GENESIS CABLE | Cable 22/12 STR OAS 1000' Reel Gray

By:

genesis cable

SKU: 22091009

Description

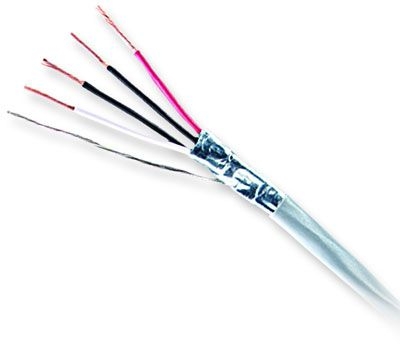

22/12 Stranded Overall Shielded CMR/CL2/FT4.

Specifications:

Conductor: 22 7/.0096 Bare Copper
Insulation: Polypropylene
Insulation Thickness: 0.006"" nom.
Insulation Colors: Black, Red, Whit, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan
Insulation Diameter: 0.042"" nom.
Jacket: PVC
Jacket Thickness: 0.015"" nom.
Outside Diameter: 0.208"" nom.
Temperature Rating: - 20 to 60° C
Operating Voltage: 300 Volts max.
Capacitance: 29 pf/ft nom.
Impedance: 52 Ohms nom.
DC Resistance: 16.7 Ohms/M' at 20°C
Flame Rating: UL 1666 (Riser), CSA FT4
